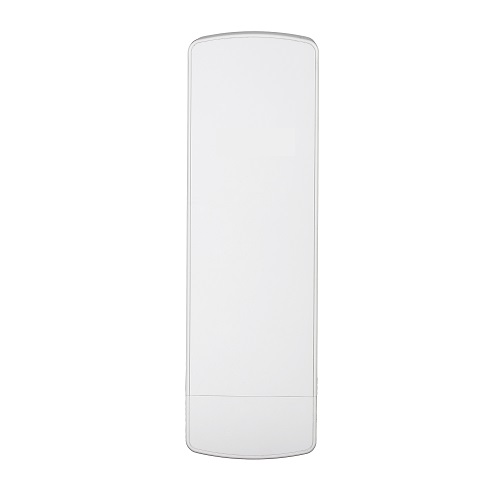

Dahua PFM881 outdoor wireless bridge, 300 Mbps, up to 3 km

The Dahua PFM881 is an outdoor 5.8 GHz wireless bridge for video and data links. It supports wireless speeds up to 300 Mbps and point-to-point transmission over distances up to 3 km when installed with a clear line of sight and suitable link conditions.

Features

• IEEE802.11A and IEEE802.11N wireless standards and 5745–5825 MHz operating band; extended supported range 4920–6100 MHz.
• Built-in 15 dBi antenna with a 40° horizontal and 15° vertical beam.
• Maximum transmit power 27 dBm; long-distance throughput up to 40 Mbps at 3 km.
• Access Point, Client, WDS AP, WDS Client and WDS Repeater modes; TDMA support.
• WPA-PSK and WPA2 security, hidden SSID and IP/MAC filtering.

Technical data

• Network interfaces: 2 Fast Ethernet ports.
• Power: passive PoE, 24V/0.5A; power consumption no more than 8 W.
• Operating temperature: -30 °C to +70 °C.
• Dimensions: 270 × 83 × 50 mm.
• Warranty: 24 months.
